Side 1/4

4K HDBaseT Transmitter with PoH

TX-70-4K Quickstart Guide

TX-70-4K Quickstart Guide | 170804

North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation

process.

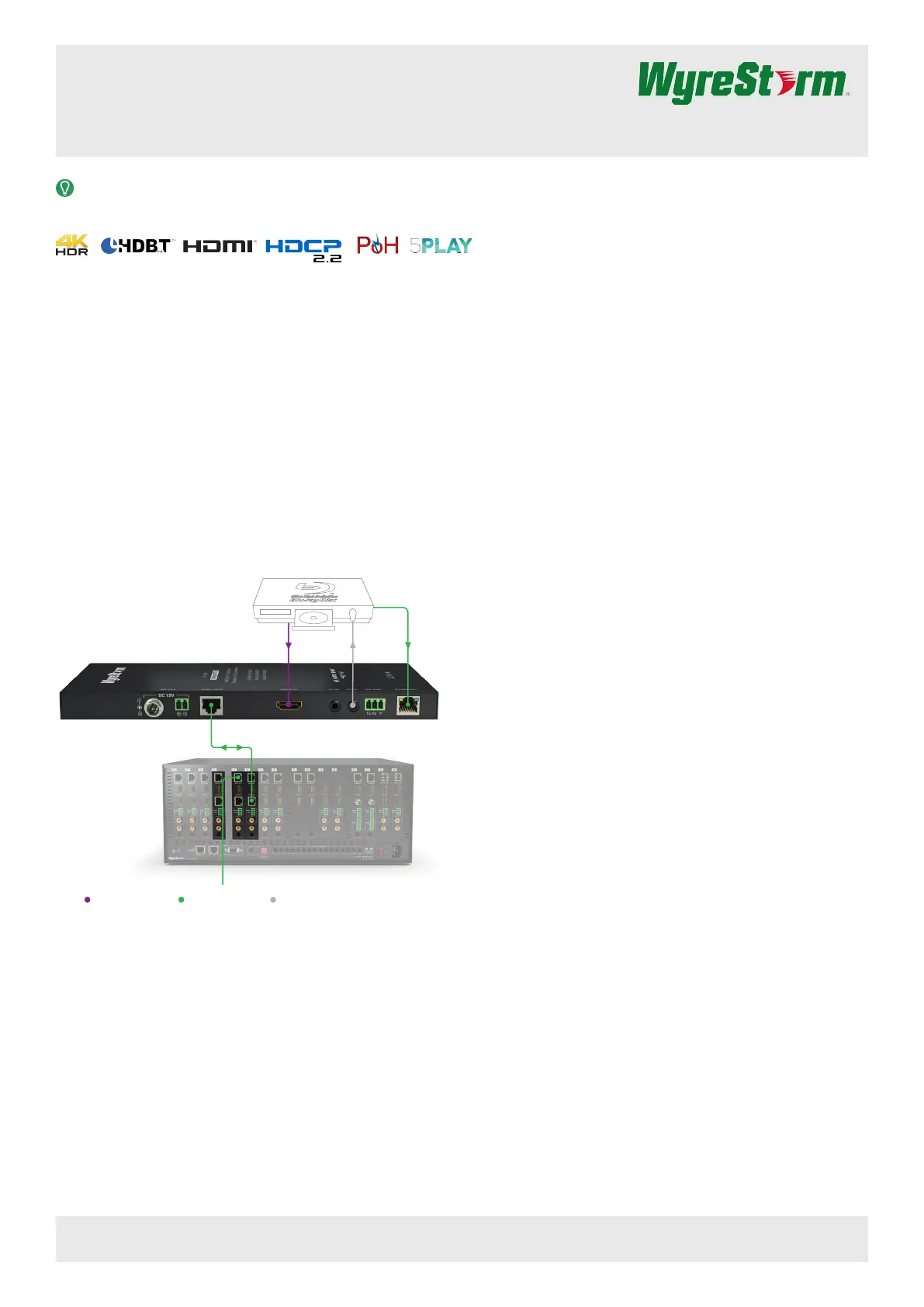

Basic Wiring Diagram

Before You Begin

• WyreStorm recommends visiting the product page before installing this

product for updates to this Quickstart Guide as well as other information

about the product.

• Verify that all items are included in the packaging per the In The Box list.

Associated Products

The TX-70-4K transmitter is designed to work with WyreStorm HDBT Input

cards as well as WyreStorm HDBaseT receivers allowing for flexibility in

system designs.

• H2X HDBaseT Matrix (with TX-H2X-HDBT card installed) – Allows for the

TX-70-4K to be used as a source on the matrix.

• RX-70-4K HDBaseT Receiver – Used when the output of the TX-70-4K is

going to a single display.

In The Box

1x TX-70-4K Transmitter

1x 3-pin Phoenix Connectors

1x Wide-band IR Emitter

1x Wide-band IR Receiver (30-50KHz)

2x Mounting Brackets

1x Quickstart Guide (this document)

Key HDMI/Digital Video HDBaseT/Ethernet

TX-70-4K

MX-1616-HDBT-H2X

with TX-H2X-HDBT

UHD Source

HDBaseT Cat5e/6/6a

HDMI IR Emitter Ethernet

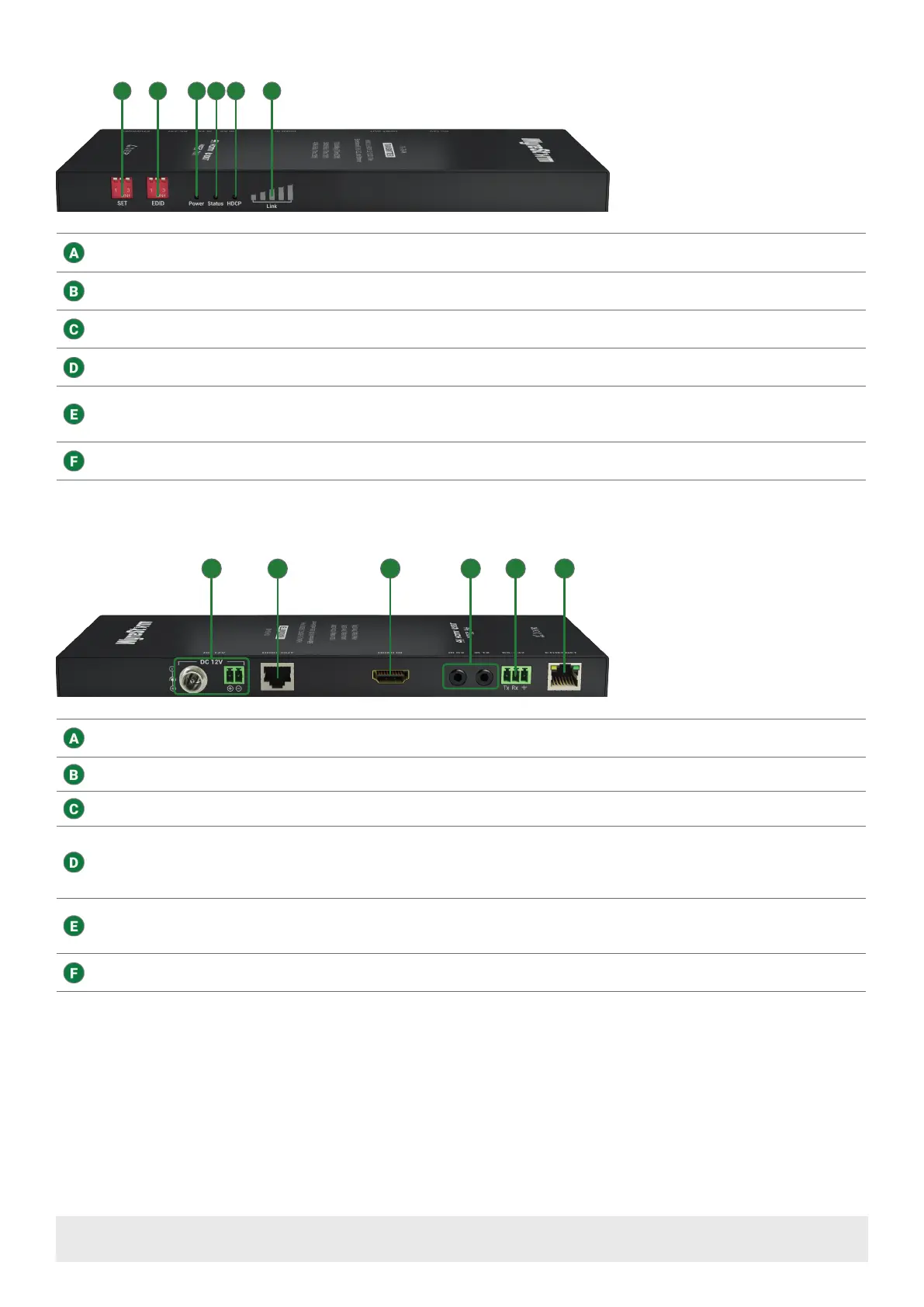

Front Panel

Rear Panel

TX-70-4K Quickstart Guide | 170804

North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343

support@wyrestorm.com

2 of 4

A B C D E F

Set (TX) 3 Position Dipswitch

Used to enable/disable long cable mode and congure RS-232 port operation. See Set Switch section for operation.

EDID 3 Position Dipswitch

Used to set EDIDs to correct resolution conflicts between the source and the display. See section for operation.EDID Settings

Power LED Solid: The receiver is powered On

Off: The receiver is powered Off

Status LED Flashing: The receiver is operating normally.

Off: The receiver is Not operating normally.

HDCP LED

Solid: HDCP content is present.

Flashing: HDCP content is not present.

Off: No signal.

LINK LED Solid: Link to receiver has been established.

Flashing: Link to receiver has not been established.

Power Input 5.5mm Screw Down Barrel Jack

2-pin Phoenix Connecter

HDBT Out 8-pin RJ-45 female

HDMI In 19-pin type A HDMI female | Supports HDMI and DVI/D with adapter

IR TX

IR RX

IR TX - 3.5mm (1/8in) Mono Jack: Connect to the supplied IR emitter to control a local device from the remote display location

via HDBaseT.

IR RX - 3.5mm (1/8in) Stereo Jack: Connect to the supplied IR receiver to send IR to the remote display location via HDBaseT.

See for more information.IR Wiring

RS-232

3-pin Phoenix Connector

Used to transmit RS-232 over HDBaseT to the remote location and for rmware updates.

See section for more information.RS-232 Wiring

Ethernet 8-pin RJ-45 female | 10/100 Mbps auto-negotiating

Connect to a Local Area Network or network device for Ethernet pass-through via HDBaseT.
