Side 1/6
Hotline Theben:
J +49 7474 692-369
WARNUNG!
Lebensgefahr durch elektrischen Schlag oder
Brand!
Montage ausschließlich von Elektrofachkraft
durchführen lassen!
Vor Montage/Demontage Netzspannung
Weitere Funktionsbeschreibungen im
LUXORliving-Handbuch.
Allgemeine Infos
Der 2-fach Universaldimmaktor der LUXOR-
living-Serie entspricht EN 60669-2-1 bei
bestimmungsgemäßer Montage
Die LUXORliving-Serie ist eine Reihe von Ge-
räten in kompakter Bauform, mit denen man
Schalten, Dimmen, Heizen und Steuern kann
Inbetriebnahme mit der Software LUXORplug
und einfache Bedienung mit der App
LUXORplay (für Android und iOS):
www.LUXORliving.de
Bei Verwendung in einem KNX-System erfolgt
die Programmierung mit der ETS
Technische Daten
Betriebsspannung: 230 V AC, +10 % / –15 %
Frequenz: 50 Hz
Standby Leistung: 0,9 W
Mindestlast: 5 W
Schutzart: IP 20 nach EN 60529
Schutzklasse: II bei bestimmungsgemäßer
Montage
Betriebstemperatur: –5 °C … +45 °C
Busspannung KNX: 21–32 V DC
Stromaufnahme KNX-Bus: ≤ 4 mA
Lastarten: R/L/C
Glüh-/Halogenlampenlast: 400 W
Elektronische Trafos: 400 W
Induktive Last: 400 W
Kompaktleuchtstof ampen (Phasenabschnitt):
400 W
LED-Lampen (Phasenabschnitt): 400 W
Verschmutzungsgrad: 2
Bemessungsstoßspannung: 4 kV
Lastangaben sind bezogen auf 230 V/50 Hz.
Die ETS-Datenbank finden Sie unter
www.theben.de.
Weitere Informationen
http://qr.theben.de/
p/4800470de
DE
WARNING!
Danger of death through electric shock
or  re!
Installation should only be carried out by
professional electrician!
Disconnect the mains power supply prior to
installation and/or disassembly!
Further functional descriptions in the
LUXORliving handbook.
General information
The 2-way universal dimmer actuator of the
LUXORliving series complies with EN 60669-
2-1 if correctly installed
The LUXORliving series is a range of compact
devices for switching, dimming, heating and
controlling
Start-up using the LUXORplug software and
easy operation using the LUXORplay app (for
Android and iOS): www.LUXORliving.de
When used in a KNX system, programming is
completed with the ETS
Technical data
Operating voltage: 230 V AC, +10 % / –15 %
Frequency: 50 Hz
Standby: 0,9 W
Minimum load: 5 W
Protection rating: IP 20
Protection class: II subject to correct installation
Operating temperature: –5 °C … +45 °C
Bus voltage KNX: 21–32 V DC
Power input KNX bus: ≤ 4 mA
Load types: R/L/C
Incandescent and halogen lamp load: 400 W
Electronic transformers: 400 W
Inductive load: 400 W
Compact  uorescent lamps (trailing edge):
400 W
LED lamps (trailing edge): 400 W
Pollution degree: 2
Rated impulse voltage: 4 kV
Loads refer to 230 V/50 Hz
The ETS database is available at
www.theben.de.
Further information
http://qr.theben.de/
p/4800470en
EN
AVERTISSEMENT!
Danger de mort, risque d‘électrocution et
d‘incendie!
• Le montage doit être effectué exclusivement
par un électricien spécialisé!
Désactiver la tension réseau avant le monta-
ge/ le démontage !
Pour d‘autres descriptions de fonction, se
reporter au manuel LUXORliving.
Informations générales
Lactionneur de variation universel à 2 ca-
naux de la série LUXORliving en conforme à
la norme EN 60669-2-1 en cas de montage
conforme
La série LUXORliving est une gamme
d‘appareils de petites dimensions permettant
de commuter, varier, chauffer et commander
Mise en service avec LUXORplug et comman-
de aisée par le biais de l‘appli LUXORplay
(pour Android et iOS) : www.LUXORliving.de
En cas d‘intégration dans un système KNX, la
programmation s‘opère via l‘ETS
Caractéristiques techniques
Tension de service : 230 V AC, +10 % / –15 %
Fréquence : 50 Hz
Éco (veille) : 0,9 W
Charge minimale : 5 W
Degré de protection : IP 20
Classe de protection : II en cas de montage
conforme
Température de service : –5 °C … +45 °C
Tension de bus KNX : 21–32 V DC
Courant absorbé à partir du bus KNX : ≤ 4 mA
Types de charges : R / L / C
Charge de lampes à incandescence/lampes à
halogène : 400 W
Transformateurs électroniques : 400 W
Charge inductive : 400 W
Transformateurs électroniques : 400 W
Lampes  uorescentes compactes (sortie de
phase) : 400 W
Lampes LED (sortie de phase) : 400 W
Degré de pollution : 2
Tension assignée de tenue aux chocs : 4 kV
Les indications de charge sont basées sur
230 V / 50 Hz
La base de données ETS est disponible sous
www.theben.de.
Informations supplémentaires
http://qr.theben.de/p/4800470fr
FR
AVVERTIMENTO!
Pericolo di morte per scosse elettriche o incendio!
Il montaggio deve essere eseguito esclusi-
vamente da parte di un elettroinstallatore
specializzato!
Prima del montaggio o dello smontaggio scol-
legare la tensione di rete!
Per maggiori descrizioni del funzionamento
fare riferimento al manuale LUXORliving.
Informazioni generali
Lattuatore dimmer universale a 2 canali della
serie LUXORliving rispecchia la norma EN
60669-2-1 con montaggio conforme
La gamma LUXORliving è una serie di appa-
recchi di forma compatta idonei per commu-
tare, regolare, riscaldare e comandare
Messa in funzione con il software LUXORplug
e utilizzo semplice grazie all‘applicazione
LUXORplay (per Android e iOS):
www.LUXORliving.de
In caso di impiego in un sistema KNX, la pro-
grammazione avviene tramite ETS
Dati tecnici
Tensione d‘esercizio: 230 V AC, +10 % / –15 %
Frequenza: 50 Hz
Stand by: 0,9 W
Carico minimo: 5 W
Tipo di protezione: IP 20
Classe di protezione: II con montaggio conforme
Temperatura d‘esercizio: –5 °C … +45 °C
Tensione bus KNX: 21–32 V DC
assorbimento di potenza bus KNX: ≤ 4 mA
Tipi di carico: R/L/C
Carico lampade a incandescenza/alogene:
400 W
Trasformatori elettronici: 400 W
Carico induttivo: 400 W
Lampade  uorescenti compatte (controllo fase
di inversione): 400 W
Lampade a LED (controllo fase di inversione):
400 W
Grado di inquinamento: 2
Sovratensione transitoria nominale: 4 kV
I carichi si riferiscono a 230 V/50 Hz
La banca dati ETS si trova www.theben.de.
Maggiori informazioni
http://qr.theben.de/p/4800470it
IT
ADVERTENCIA!
¡Peligro de muerte por descarga elétrica o
incendio!
¡El montaje debe ser llevado a cabo exclusiva-
mente por un electricista profesional!
¡Desconecte la tensión de red, antes de proce-
der al montaje o desmontaje!
Descripciones de función adicionales en el
manual LUXORliving.
Información general
El actuador de regulación de luz universal de
2 canales de la serie LUXORliving se ajusta
a la norma EN 60669-2-1 si el montaje se
efectúa conforme a lo previsto
La serie LUXORliving es una serie de aparatos
compactos que permiten conmutar, regular la
luz, controlar la calefacción y otros dispositi-
vos
Puesta en servicio con el software LUXORplug
y manejo sencillo con la App LUXORplay (para
Android e iOS): www.LUXORliving.de
Al utilizar un sistema KNX, la programación se
realiza con el ETS
Datos técnicos
Tensión de servicio: 230 V AC, +10 % / –15 %
Frecuencia: 50 Hz
Standby: 0,9 W
Carga mín.: 5 W
Grado de protección: IP 20
Clase de protección: II en caso de montaje
conforme al uso adecuado
Temperatura de funcionamiento: –5 °C … +45 °C
Tensión del bus KNX: 21–32 V DC
Consumo de corriente del bus KNX: ≤ 4 mA
Tipos de carga: R/L/C
Carga de las lámparas incandescentes/
halógenas: 400 W
Transformadores electrónicos: 400 W
Carga inductiva: 400 W
Lámparas  uorescentes compactas (corte de
fase descendente): 400 W
Lámparas LED (corte de fase descendente):
400 W
Grado de polución: 2
Impulso de sobretensión admisible: 4 kV
Los datos de carga se refieren a 230 V/50 Hz
Encontrará la base de datos ETS en
www.theben.de.
Información adicional
http://qr.theben.de/p/4800470es
ES
ATENÇÃO!
Perigo de morte por choque eléctrico ou
incêndio!
A montagem deve ser efectuada apenas por
um electricista especializado!
Antes da montagem/desmontagem activar a
tensão de rede!
Para outras descrições de funções, consulte o
manual LUXORliving.
Informações gerais
O actuador universal de regulação de lumi-
nosidade de 2 níveis da série LUXORliving
corresponde à EN 60669-2-1 em caso de
montagem correcta
A série LUXORliving é uma série de aparelhos
de construção compacta, com os quais se
pode comutar, atenuar, aquecer e controlar
Colocação em funcionamento com o soft-
ware LUXORplug e operação fácil com a App
LUXORplay (para Android e iOS):
www.LUXORliving.de
Em caso de utilização num sistema KNX, a
programação ocorre com o ETS
Dados técnicos
Tensão de serviço: 230 V AC, +10 % / –15 %
Frequência: 50 Hz
Standby: 0,9 W
Carga mínima: 5 W
Tipo de protecção: IP 20
Classe de protecção: II em caso de montagem
correcta
Temperatura operacional: –5 °C … +45 °C
Tensão de barramento KNX: 21–32 V DC; con-
sumo de corrente do barramento KNX: ≤ 4 mA
Tipos de carga: R/L/C
Carga das lâmpadas incandescentes/de halo-
géneo: 400 W
Transformadores electrónicos: 400 W
Carga indutiva: 400 W
Lâmpadas  uorescentes compactas (secção de
fase): 400 W
Lâmpadas LED (secção de fase): 400 W
Grau de poluição: 2
Tensão transitória de dimensionamento: 4 kV
As especificações de cargas referem-se a
230 V/50 Hz
Pode aceder ao banco de dados ETS em
www.theben.de.
Mais informações
http://qr.theben.de/p/ pt4800470
PT
Theben AG | Hohenbergstraße 32 | 72401 Haigerloch | GERMANY | Telefon +49 7474 692-369 | info@theben.de | www.theben.de
307294 01 20.09.2017

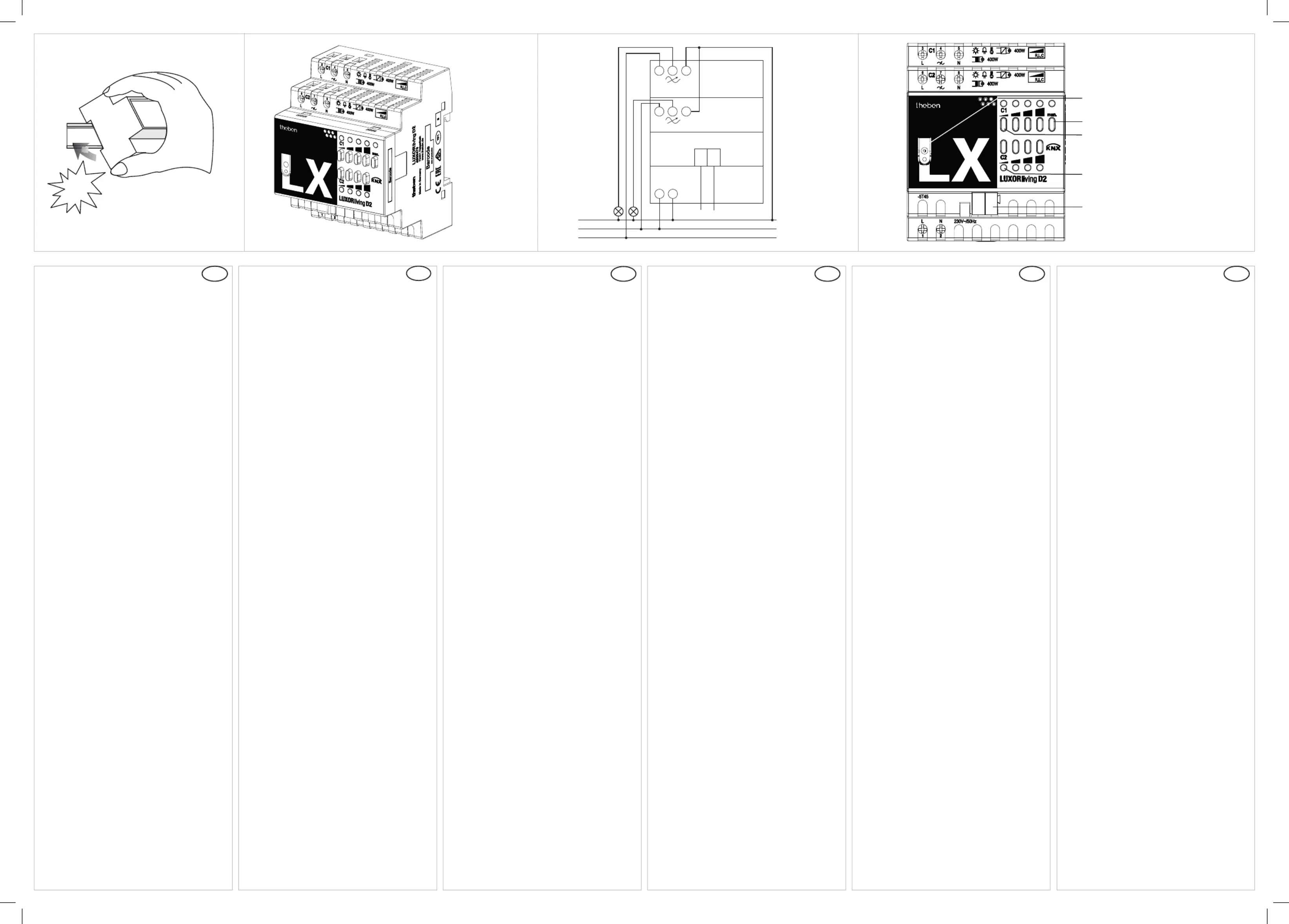

LUXORliving D2 4800470
LUXORplayLUXORplug
LUXORliving
